Large-space buildings use hot water radiant panels to achieve high efficiency and energy saving

time：2023-07-05
hits：572次
source：正弘奥能

In the heating design of tall space buildings, it is necessary to fully consider the problems of high building energy consumption, large heat transfer loss, and large indoor temperature gradient.At present, the solution to the heating of tall space buildings is also a variety of heating methods, the current domestic commonly used heating methods or radiator heating and radiator + heater with heating two schemes.Most of the traditional convection heating equipment can not independently meet the heating needs of tall space, there are also high energy consumption, comfort is not high.





	Energy saving is an important strategic goal in our country, and energy-saving technologies and products are facing huge market demand.High space air stratification is serious, easy to lead to hot and cold, some building doors open frequently, cold air intrusion heat consumption.Building energy consumption accounts for 40 ~ 50% of the total energy consumption, of which winter heating is the main body of energy consumption of tall space buildings.Therefore, in addition to the use of external wall insulation and advanced door and window systems, the continuous improvement and innovation of heating methods is the key to energy saving.

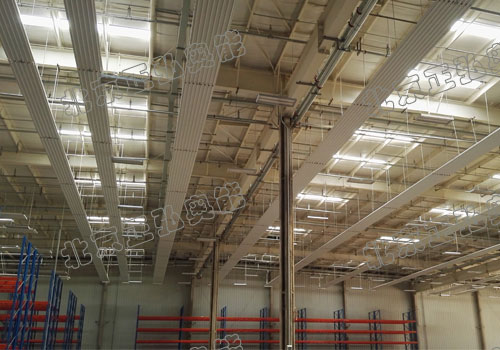

	The ceiling hot water radiation panel is not only efficient and energy-saving, but also has the characteristics of green environmental protection, space saving and high comfort.The ceiling hot water radiation panel is a kind of heating equipment installed on the top of tall space buildings and heated by infrared radiation heat transfer. Its essence is heat radiation technology.The ceiling hot water radiation panel is a heating system that uses the metal radiation panel combined with tube and plate as the radiation source, uses ordinary hot water and high temperature hot water as the medium, and arranges the radiation panel in a series of strips and is installed in the form of ceiling. This system is superior to the traditional radiator convection heating and hot air heating equipment, and solves the problems of poor effect and high energy consumption of convective heating in tall Spaces.It is an ideal heating method for tall space buildings.





	<img src="/Uploads/image/20230705/20230705115642_12603.jpg" alt="" />





	Whether people feel comfortable in tall space buildings also depends on the heat transfer mode of the surrounding environment.Is there a heating method that can radiate the heat radiation of the panel, comfortable and uniform, no fan, no convection, no dust, is a very comfortable heat transfer method for the human body.The air temperature in the building is lower than the object temperature in the infrared irradiation area (generally 2-3 degrees lower), so the air stratification and convection effect are reduced, and the heating system has a high utilization rate of heat energy and good comfort.





	In fact, the initial installation and maintenance costs of the ceiling hot water radiation panel are not higher than the operating costs of traditional convection heating on the market.The hot water radiation panel itself has no moving parts such as fans and motors, so the maintenance is simple and almost no maintenance costs are required.In addition, the initial investment in hot water radiant panels can be recovered within a few years through energy savings.





	The ECOPAN hot water radiation panel promoted and sold by Beijing Leadway Power Co., Ltd. adopts an innovative design concept. The pipe is the warmest part of the panel, completely down, and 70% of the surface is wrapped by the metal plate (the wrapping Angle is more than 280°), which increases the heat transfer area and perfectly ensures the transfer of heat from the tube to the plate.





	The use of hot water radiant panel heating for tall space buildings does not increase the fire rating of the building, and can be used in volatile and flammable building environments, without causing the risk of fire and explosion.The design life of ECOPAN hot water radiation panel promoted and sold by Beijing Zhenghong Aoneng Environmental Protection Technology Co., Ltd. is generally 30 years.





	<img src="http://www.leadwaypower.com/Uploads/image/20230706/20230706095419_14490.jpg" alt="" />
