Which heating method is more ideal for high-space industrial plants?

time：2025-04-25
hits：219次
source：正弘奥能

With the continuous development of the industrial field, the original convective heating methods such as radiators and warm air fans have revealed their drawbacks. Firstly, the scale of individual buildings is large, and the layout of radiators is difficult, making it hard to meet the design requirements for heating in high Spaces. Secondly, the buildings are tall, and the phenomenon of being hot at the top and cold at the bottom in traditional convective heating is very serious. When using a warm air blower for heating, there is a problem of severe air disturbance in the workshop and uneven temperature. Based on over ten years of practical usage experience, we believe that the hot water radiant panel heating method is a relatively ideal choice for heating in large-space industrial plants.

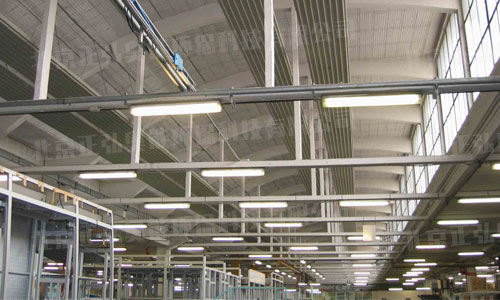

	The hot water radiant panels installed on the ceiling use hot water as the heating fluid. The thermal inertia is very low, and the hot water radiant panel is particularly suitable as a heating method for large Spaces such as industrial halls, offices, stadiums, stores, and supermarkets. This heating system reduces management costs because it allows for all or part of the operation interruption, has the shortest preheating time based on the external temperature, and has a smaller thermal gradient. In large Spaces, reducing vertical gradient heat loss means saving energy and economic costs. Therefore, the hot water radiant panel heating method is particularly suitable for replacing the old traditional convection heating method, which has average operation effect and limited efficiency. Nowadays, the hot water radiant panel heating method is adopted, which requires no more maintenance. Moreover, the system can be designed to achieve different heating temperatures, enabling on-demand heating.





	<img src="https://www.leadwaypower.com/Uploads/image/20250425/20250425092303_41649.jpg" alt="" />


ECOPAN hot water radiant plate promoted and sold by Beijing Leadway Power Co., Ltd. adopts an innovative design concept. The main feature of ECOPAN hot water radiant plate is that on the steel plate shell, 2/3 of its surface is wrapped with electric welded or unwelded steel pipes with a diameter of 1/2 "or 3/4". Pay special attention to the expansion between the pipes and the plates, as well as the technical solutions that make installation easier. As the warmest part of the panel, the pipe is completely downward and 70% of its surface is wrapped by a metal plate (with an wrapping Angle exceeding 280°), which increases the heat transfer area, effectively ensuring the heat transfer from the pipe to the plate, reducing convection and increasing radiation, so as to quickly obtain the required temperature without the need for long preheating, thus saving energy.

ECOPAN hot water radiant panel adopts modular splicing and series strip arrangement. Two modules are directly connected by compression joints, which is fast, simple and convenient. After the pipe connection is completed, insert decorative cover plates between the radiant plates to cover the connection area and ensure the aesthetic appearance of the product. Meanwhile, this heating method is more natural and comfortable than the strong convection system. Radiant heating does not cause dust through pipes. The staff enjoy a warm working environment.
